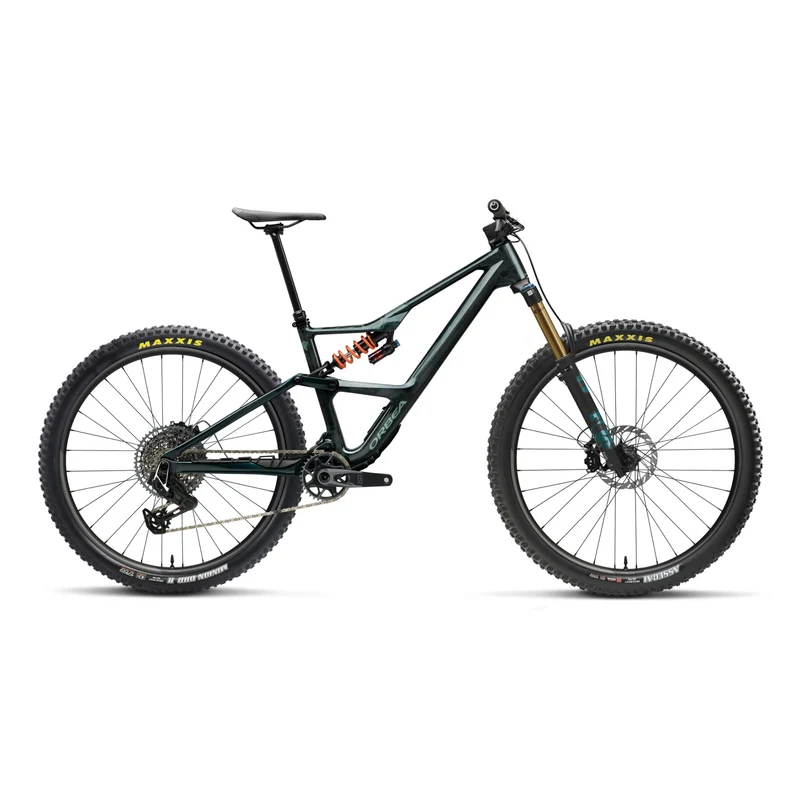

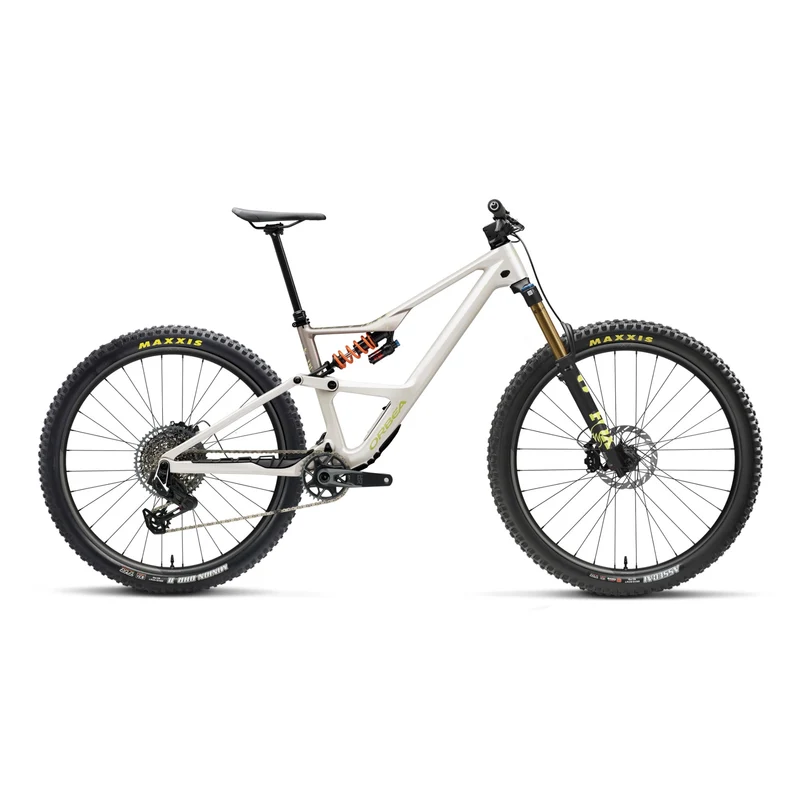

Occam LT M-Team 2027

The Orbea Occam LT is a progressive trail bike, built to be ridden hard when the trail turns steep, fast and loose. It runs 160mm of fork travel and 150mm at the rear on a progressive, coil-friendly suspension platform (around 30% progressivity), so it soaks up big hits while still pedalling efficiently – Occam has always been known for climbing well, and that hasn't changed.

Progressive Trail geometry, the Attitude Adjust flip-chip (High to Low in seconds with the Quick Flip system) and an angle-adjustable headset let you tune it from flowing trail to a near-enduro setup, while a steep seat angle, room for a 230mm dropper, LOCKR storage, a pivot multitool and fully sealed bearings make it a hugely capable, low-fuss machine.

The Occam LT M-Team is the flagship, and it makes the most of the platform's coil-friendly design with a Fox DHX Factory coil shock paired to a Kashima Fox 36 Factory fork – plush, supportive and unflappable on rough, fast descents. Shifting is SRAM's wireless X0 Eagle AXS Transmission, braking comes from powerful SRAM Maven Silver four-pistons, and the OQUO Mountain Control MC32LTD wheelset rounds out a genuinely no-compromise trail bike.

Features

• Carbon frame
• Fork: Fox 36 Float Factory 160, Grip X, QR15x110, Kashima
• Rear shock: Fox DHX Factory 2-Pos Adjust custom tune 210x55mm
• Drivetrain: Sram X0 Eagle AXS
• Brakes: Sram Maven Silver 4 piston Hydraulic Disc
• Wheels: Oquo Mountain Control MC32LTD
• Tyres: Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
• 160mm fork / 150mm rear travel – progressive, coil-friendly trail suspension (~30% progressivity)
• Attitude Adjust flip-chip (High/Low) plus angle-adjustable headset (±0.75°) to fine-tune the geometry
• 29" wheels, Pure Trail geometry and a steep 78° seat angle for efficient climbing
• Room for up to a 230mm dropper post (Steep 'n' Deep design)
• LOCKR in-frame storage, Fully Loaded Pivot multitool, fully sealed bearings and Second Skin paint protection

Specifications::Occam LT M-Team 2027

• Discipline: All Mountain

• Material: Carbon

• Front Travel: 160mm

• Rear Travel: 150mm

• Wheel Size: 29"

• Warranty: Lifetime (frame)

Frame - Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Both Internal & External cable routing. Asymmetric design. 29" wheels.
Fork - Fox 36 Float Factory 160, Grip X, QR15x110, Kashima
Shock - Fox DHX Factory 2-Pos Adjust custom tune 210x55mm
Headset - Alloy 1-1/2", Black Oxidated Bearing
Stem - OC Mountain Control MC11 Alu SL, 0º
Handlebar - OC Mountain Control MC10 Carbon, Rise 20, Width 800
Brakes - Sram Maven Silver 4 piston Hydraulic Disc
Rear Derailleur - Sram X0 Eagle AXS
Shifters - Sram AXS Pod
Cassette - Sram GX-1275 Eagle 10-52t 12-Speed
Chain - Sram GX Eagle 12-Speed
Crankset - Sram X0 Eagle Dub Black 32t
Wheels - Oquo Mountain Control MC32LTD
Tyres - Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
Seatpost Remote - Shimano SL-MT500
Saddle - Fizik Terra Ridon X5 145mm
Mudguard - Fox Fork, Short
Storage - Accesories Containers
Side Bag - Accesories Containers
Computer Mount - OC Computer Mount CM-05, Garmin/Sigma
