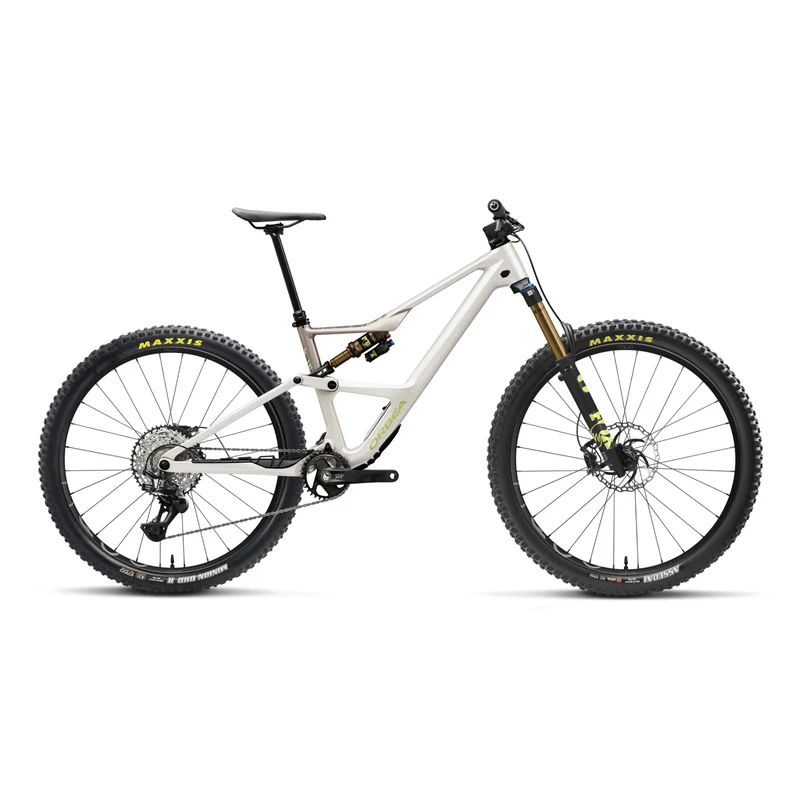

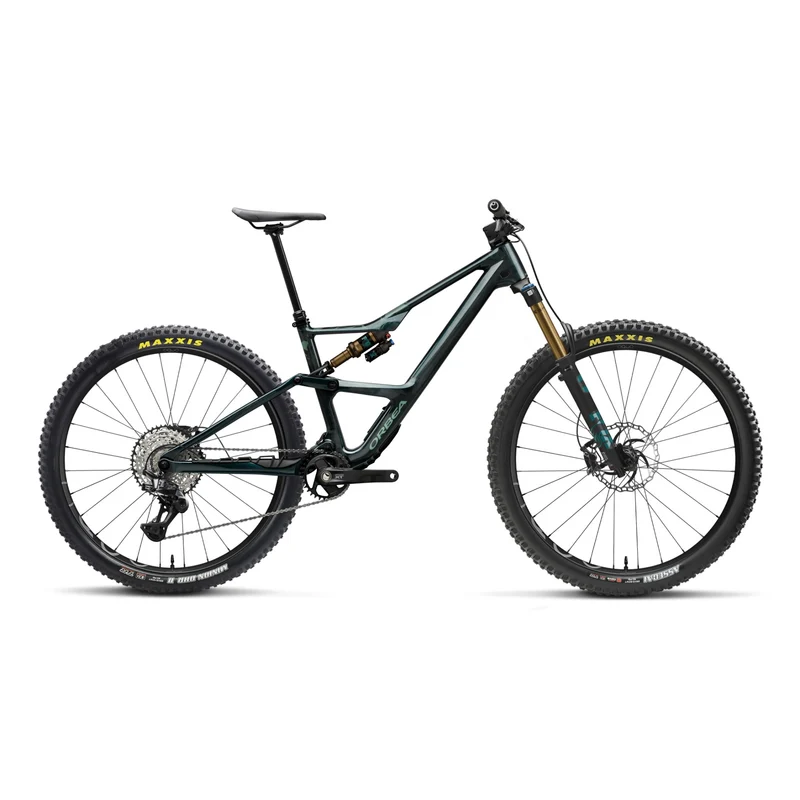

Occam LT M10 2027

The Orbea Occam LT is a progressive trail bike, built to be ridden hard when the trail turns steep, fast and loose. It runs 160mm of fork travel and 150mm at the rear on a progressive, coil-friendly suspension platform (around 30% progressivity), so it soaks up big hits while still pedalling efficiently – Occam has always been known for climbing well, and that hasn't changed.

Progressive Trail geometry, the Attitude Adjust flip-chip (High to Low in seconds with the Quick Flip system) and an angle-adjustable headset let you tune it from flowing trail to a near-enduro setup, while a steep seat angle, room for a 230mm dropper, LOCKR storage, a pivot multitool and fully sealed bearings make it a hugely capable, low-fuss machine.

The Occam LT M10 pairs the OMR carbon frame with Fox's top-tier Factory suspension – a Kashima-coated Fox 36 Factory fork and Fox Float X Factory shock – for noticeably more sensitivity and control. Shimano XT 12-speed shifting and XT four-piston brakes handle the controls, while a tough OQUO Mountain Control MC32TEAM wheelset keeps things precise. Premium performance without quite reaching the flagship price.

Features

• Carbon frame
• Fork: Fox 36 Float Factory 160, Grip X, QR15x110, Kashima
• Rear shock: Fox Float X Factory 2-Pos Adjust Evol LV Kashima custom tune 210x55mm
• Drivetrain: Shimano XT M8200 SGS Shadow Plus
• Brakes: Shimano XT 8220 Hydraulic Disc
• Wheels: Oquo Mountain Control MC32TEAM
• Tyres: Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
• 160mm fork / 150mm rear travel – progressive, coil-friendly trail suspension (~30% progressivity)
• Attitude Adjust flip-chip (High/Low) plus angle-adjustable headset (±0.75°) to fine-tune the geometry
• 29" wheels, Pure Trail geometry and a steep 78° seat angle for efficient climbing
• Room for up to a 230mm dropper post (Steep 'n' Deep design)
• LOCKR in-frame storage, Fully Loaded Pivot multitool, fully sealed bearings and Second Skin paint protection

Specifications::Occam LT M10 2027

• Discipline: All Mountain

• Material: Carbon

• Front Travel: 160mm

• Rear Travel: 150mm

• Wheel Size: 29"

• Warranty: Lifetime (frame)

Frame - Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Both Internal & External cable routing. Asymmetric design. 29" wheels.
Fork - Fox 36 Float Factory 160, Grip X, QR15x110, Kashima
Shock - Fox Float X Factory 2-Pos Adjust Evol LV Kashima custom tune 210x55mm
Headset - Alloy 1-1/2", Black Oxidated Bearing
Stem - OC Mountain Control MC11 Alu SL, 0º
Handlebar - OC Mountain Control MC10 Carbon, Rise 20, Width 800
Brakes - Shimano XT 8220 Hydraulic Disc
Rear Derailleur - Shimano XT M8200 SGS Shadow Plus
Shifters - Shimano XT M8200 I-Spec EV
Cassette - Shimano CS-M7200 10-51t 12-Speed
Chain - Shimano M6100
Crankset - Shimano XT M8200 32t
Wheels - Oquo Mountain Control MC32TEAM
Tyres - Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
Seatpost Remote - Shimano SL-MT500 I-Spec EV
Saddle - Fizik Terra Ridon X5 145mm
Storage - Accesories Containers
Side Bag - Accesories Containers
Computer Mount - OC Computer Mount CM-05, Garmin/Sigma
