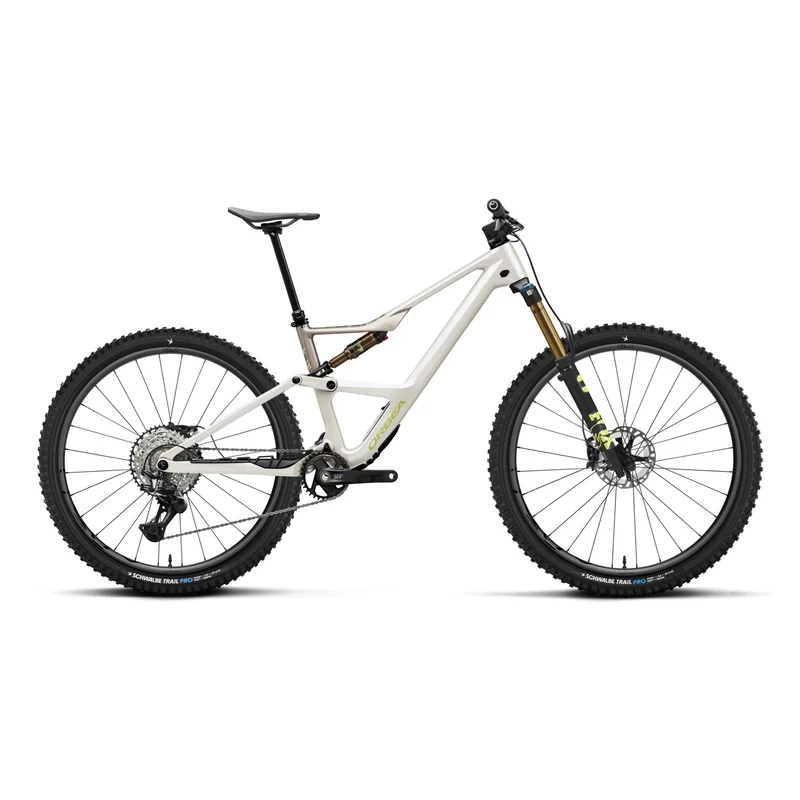

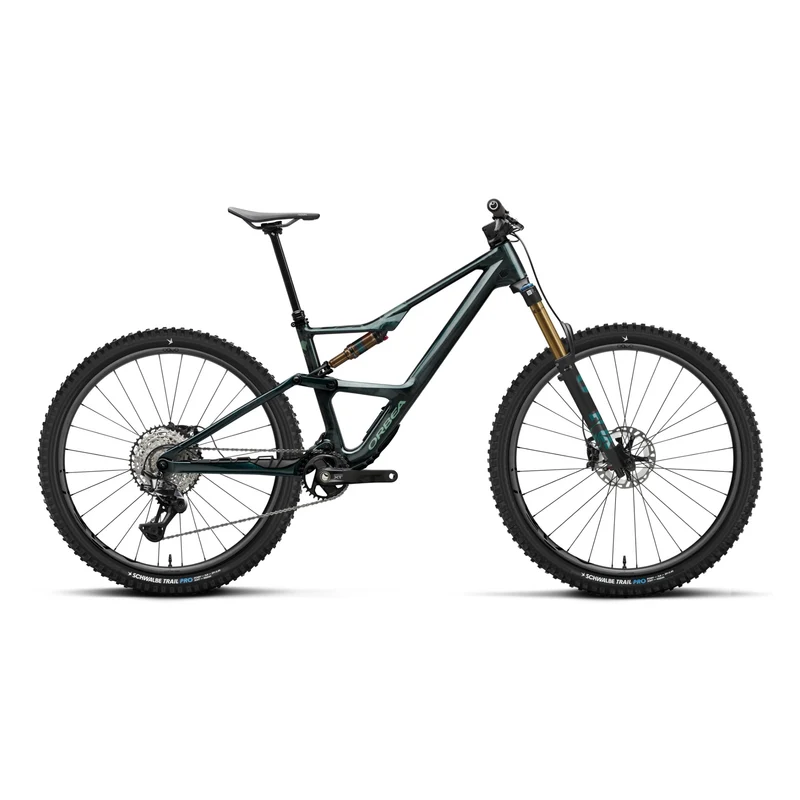

Occam SL M10 2027

The Orbea Occam SL is the lighter, faster side of the Occam family – a 140mm trail bike built for riders who want to cover big ground quickly and still have fun when the trail points down. Where the LT chases all-out capability, the SL is all about efficiency and flow, with a light frame, Fast Trail geometry and 140mm of well-controlled travel front and rear that rewards a smooth, active riding style.

It shares the clever thinking that runs through every Occam: Attitude Adjust and an angle-adjustable headset to fine-tune the geometry, a Squidlock remote so you can firm up the suspension without taking a hand off the bar, and neat touches like LOCKR in-frame storage, a multitool hidden in the pivot and fully sealed bearings. It makes a genuine quiver-of-one for fast trail riding and long days in the hills.

The Occam SL M10 pairs the lighter carbon frame with higher-end Fox suspension and finishing kit for a noticeably more polished, responsive ride. It is aimed at riders who want a genuinely quick, all-day trail bike that still loves to be pushed. It runs a Fox 36 Float SL Factory 140 fork and a Fox Float Factory Remote Push-lock Evol Kashima custom tune 210x50mm shock. Finishing kit includes Shimano XT M8200 SGS Shadow Plus shifting and Shimano XT 8220 Hydraulic Disc brakes.

Features

• Carbon frame
• Fork: Fox 36 Float SL Factory 140, Grip SL, Remote-Adj Push-lock, QR15x110, Kashima
• Rear shock: Fox Float Factory Remote Push-lock Evol Kashima custom tune 210x50mm
• Drivetrain: Shimano XT M8200 SGS Shadow Plus
• Brakes: Shimano XT 8220 Hydraulic Disc
• Wheels: Oquo Mountain Performance MP30TEAM
• 140mm fork / 140mm rear travel – efficient Fast Trail suspension
• Fast Trail geometry with angle-adjustable headset and Attitude Adjust
• 29" wheels and a steep seat angle for fast, efficient climbing
• Squidlock remote lockout for on-the-fly control
• LOCKR in-frame storage, Fully Loaded Pivot multitool, sealed bearings and Second Skin paint protection

Specifications::Occam SL M10 2027

• Discipline: Trail

• Material: Carbon

• Front Travel: 140mm

• Rear Travel: 140mm

• Wheel Size: 29"

• Warranty: Lifetime (frame)

Frame - Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Both Internal & External cable routing. Asymmetric design. 29" wheels.
Fork - Fox 36 Float SL Factory 140, Grip SL, Remote-Adj Push-lock, QR15x110, Kashima
Shock - Fox Float Factory Remote Push-lock Evol Kashima custom tune 210x50mm
Remote Lockout - OC Squidlock MP11, Suspension + Dropper
Headset - Alloy 1-1/2", Black Oxidated Bearing
Stem - OC Mountain Control MC11 Alu SL, 0º
Handlebar - OC Mountain Control MC10 Carbon, Rise 20, Width 800
Brakes - Shimano XT 8220 Hydraulic Disc
Rear Derailleur - Shimano XT M8200 SGS Shadow Plus
Shifters - Shimano XT M8200 I-Spec EV
Cassette - Shimano CS-M7200 10-51t 12-Speed
Chain - Shimano M6100
Crankset - Shimano XT M8200 32t
Wheels - Oquo Mountain Performance MP30TEAM
Saddle - Fizik Terra Ridon X5 145mm
Storage - Accesories Containers
Side Bag - Accesories Containers
Grips - Ergon GXR
Computer Mount - OC Computer Mount CM-05, Garmin/Sigma
